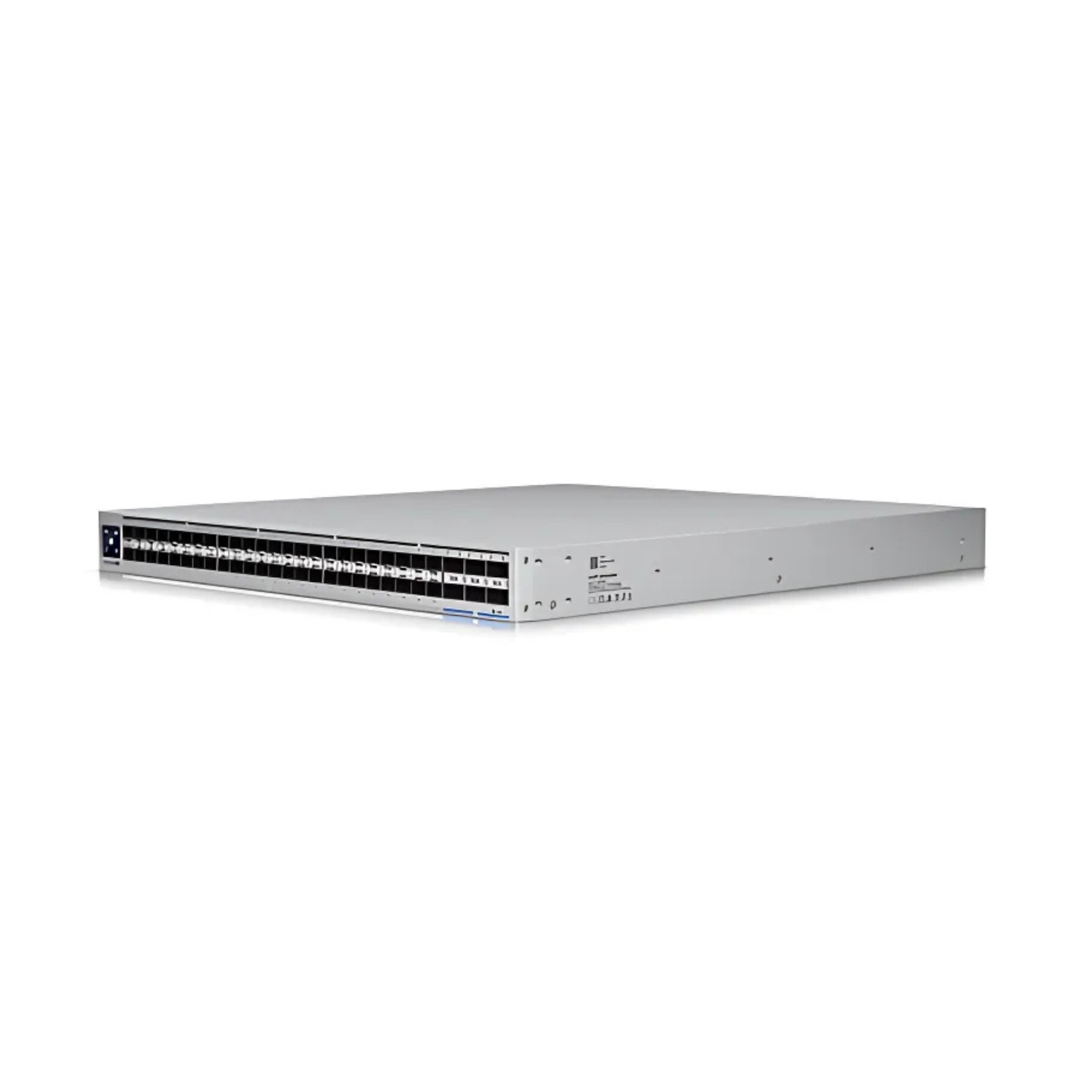

UniFi Enterprise Campus Switching

The UniFi Enterprise Campus Switching series offers high-performance core switches with speeds up to 100 Gbps and high-capacity PoE+++ output, designed for high availability system architectures.

Features:

High-Speed Connectivity: Supports up to 100 Gbps speeds for robust data transmission.
Power over Ethernet (PoE+++): Delivers high-capacity PoE+++ output, ideal for powering devices like IP cameras and access points.
High Availability: Engineered for high availability system designs, ensuring network reliability.
Layer 2 Features: Includes IGMP snooping, STP/RSTP with priorities, port isolation, storm control, voice VLAN, port mirroring, LACP port aggregation, multicast/broadcast rate limiting, MAC address blocking, flow control, jumbo frames, proprietary loop protection, DHCP snooping/guarding, egress rate limit, LLDP-MED, port restricted by MAC, and device isolation with ACLs.
Layer 3 Features: Supports DHCP for locally-managed networks, DHCP relay, inter-VLAN routing between networks on the same switch, static routing between local networks, network isolation with ACLs, Etherlighting™, Ethernet locating, speed/link, native VLAN/network, SFP28 locating, and LEDs for system status and Ethernet link/activity.
Management: Features a 1.3″ touchscreen LCM display for easy monitoring and management.
Environmental Specifications: Operates in temperatures ranging from -5 to 40°C (23 to 104°F) and humidity levels from 10 to 90% noncondensing.

These features make the UniFi Enterprise Campus Switching series suitable for large-scale enterprise networks requiring high performance, reliability, and advanced management capabilities.

Specifications:

Switching Capacity: Up to 3.6 Tbps
Forwarding Rate: Up to 2.3 Bpps
Ports:
- ECS-24-PoE: 24 x 10 GbE RJ45, 8 x 2.5 GbE RJ45, 2 x 25G SFP28
- ECS-48-PoE: 48 x 10 GbE RJ45, 16 x 2.5 GbE RJ45, 4 x 25G SFP28
- ECS-Aggregation: 48 x 25G SFP28, 6 x 100G QSFP28
PoE Output: Up to 1,200W (ECS-24-PoE), 2,400W (ECS-48-PoE)
Power Supply: Hot-swappable AC/DC modules with redundancy
Cooling: Hot-swappable fan modules with redundancy
Management: 1.3″ touchscreen LCM display
Environmental: Operating temperature: -5 to 40°C (23 to 104°F)
Certifications: CE, FCC, IC

These specifications make the UniFi Enterprise Campus Switching series suitable for large-scale enterprise networks requiring high performance, reliability, and advanced management capabilities.
