Large Scale

• High Device and Client Support: Capable of managing over 500 UniFi devices and supporting more than 5,000 clients, ensuring scalability for large environments.
• Robust Performance: Delivers 12.5 Gbps Intrusion Prevention System (IPS) routing, providing high-speed data processing with advanced security measures.
• Advanced Cybersecurity: Integrates features such as Intrusion Detection and Prevention Systems (IDS/IPS) and real-time inspection of encrypted packets through NeXT AI Inspection (SSL/TLS decryption), enhancing network protection.

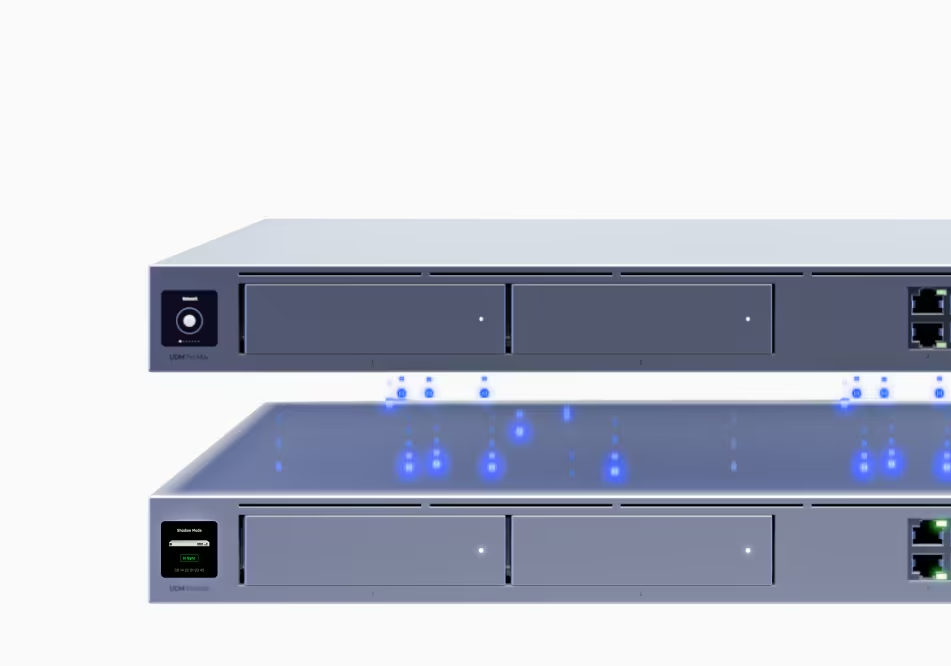

• High Availability: Employs Shadow Mode High Availability with automatic failover (VRRP), ensuring uninterrupted connectivity and system reliability.
• Comprehensive Network Management: Runs the UniFi Network application, offering full-stack network management capabilities for seamless control and monitoring.
• Versatile Connectivity Options: Equipped with multiple high-speed ports, including 25G SFP28, 10G SFP+, and 2.5 GbE RJ45 ports, with select interfaces remappable to WAN for flexible network configurations.

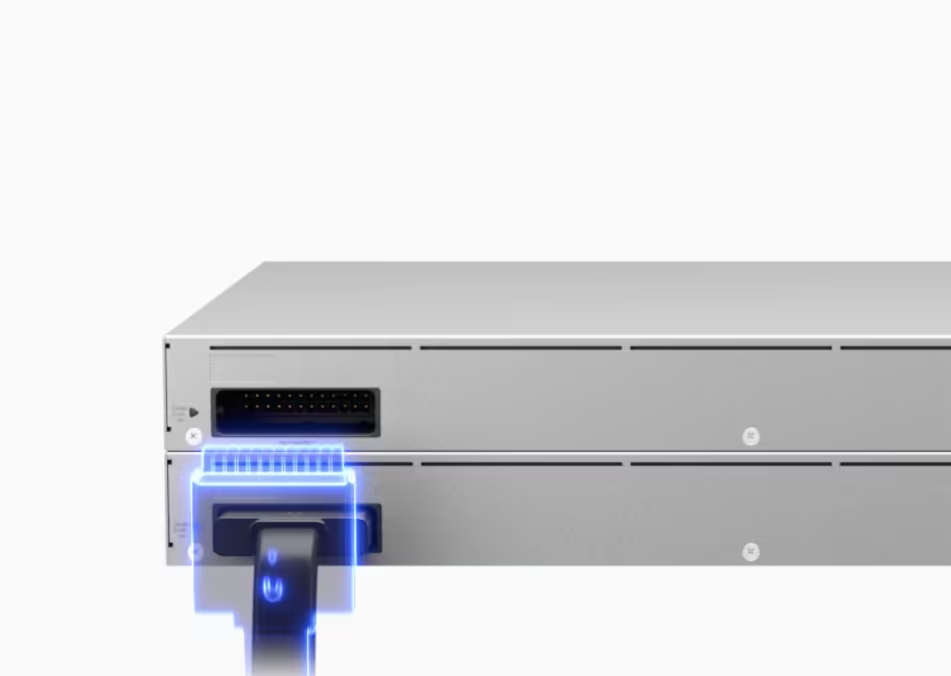

• Power Redundancy: Includes hot-swappable power supply units (PSUs) to ensure continuous operation and minimize downtime during maintenance.

These features make the Large Scale UniFi Cloud Gateways an ideal choice for organizations seeking scalable, secure, and efficient network solutions.

Specifications:

Mechanical:

• Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″)
• Weight: 6.5 kg (14.3 lb)
• Enclosure Material: Aluminum CNC, SGCC steel

Hardware:

• Processor: 18-core ARM® v8.2 at 2 GHz
• System Memory: 16 GB DDR4 DIMM
• Management Interface: Ethernet, Bluetooth
• Networking Interfaces:
  • (2) 25G SFP28 ports
  • (2) 10G SFP+ ports
  • (2) 2.5 GbE RJ45 ports
  • Any (2) interfaces can be mapped to WAN

Power:

• Power Method: (1) Universal AC input, 100–240V AC, 7A Max., 50/60 Hz
• Power Supply: (2) Hot-swappable 150W CRPS
• Supported Voltage Range: 100–240V AC
• Max. Power Consumption: 82W

Environmental:

• Operating Temperature: 0 to 40° C (32 to 104° F)
• Operating Humidity: 5 to 95% noncondensing

Certifications:

• CE, FCC, IC
