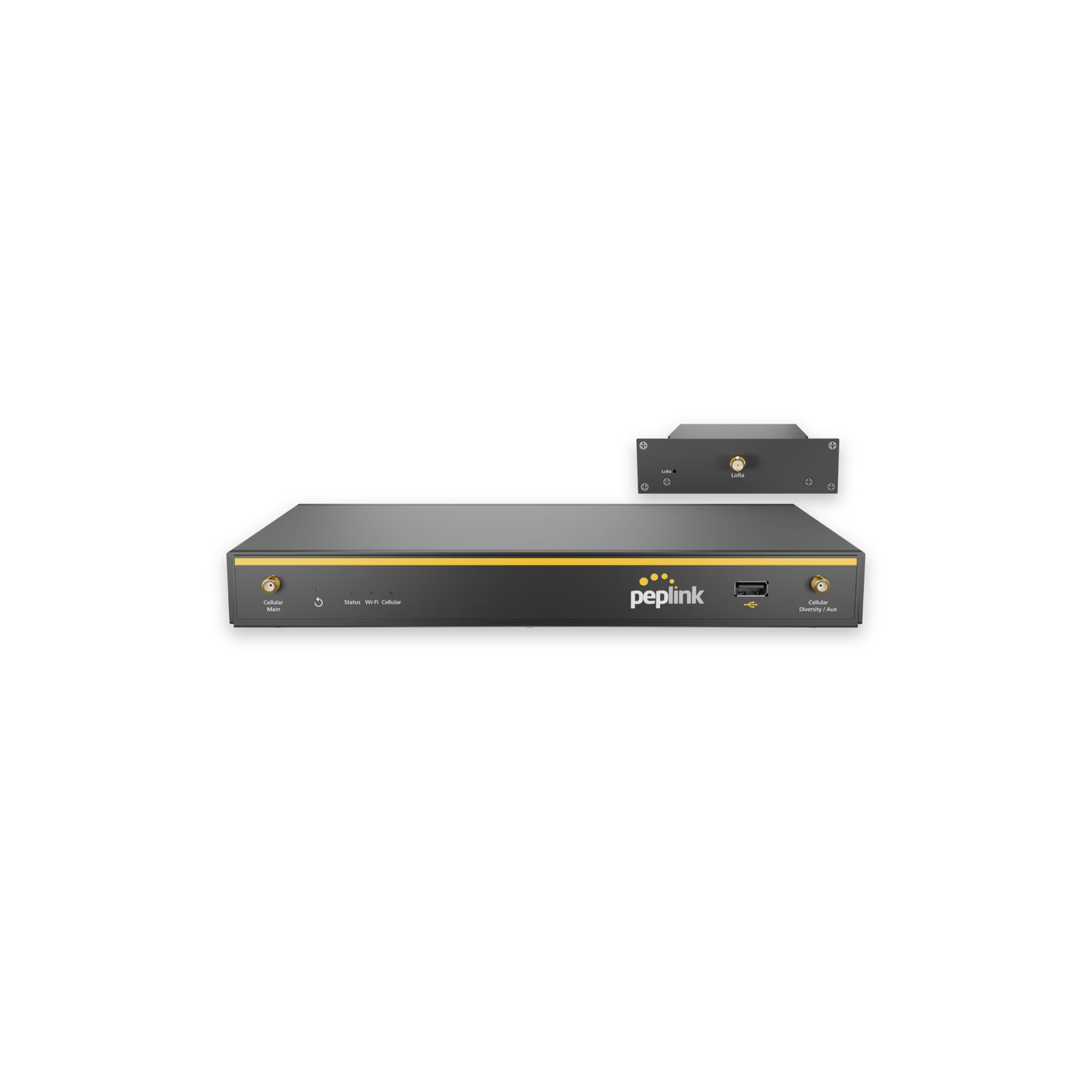

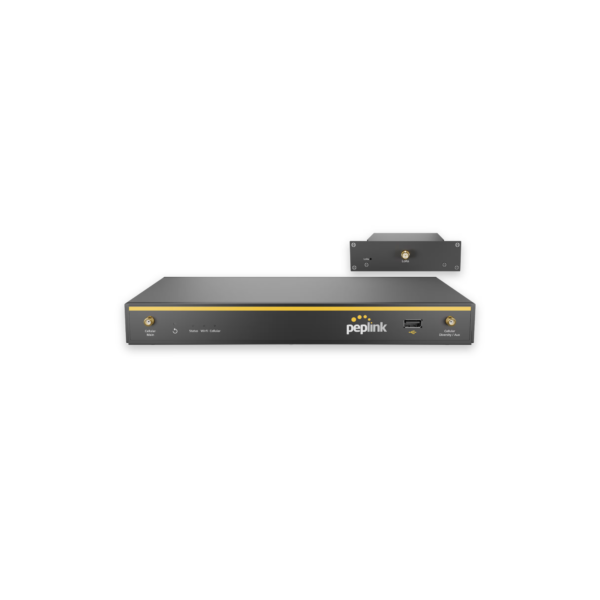

Balance 20X (with FlexModule Mini LoRaWAN)

• Dual-WAN Connectivity: Supports two WAN ports for redundancy and load balancing, ensuring reliable internet connections.
• 4G LTE Support: Can be expanded with 4G LTE modems for mobile broadband connectivity.
• FlexModule Mini LoRaWAN: Integrates LoRaWAN support for long-range, low-power IoT devices and sensors, ideal for remote applications.
• SpeedFusion Technology: Bonds multiple WAN connections to boost bandwidth and provide failover capabilities.
• Wi-Fi Support: Includes 802.11ac Wi-Fi for flexible wireless network access.
• Automatic Failover: Ensures continuous network uptime by automatically switching to the backup connection in case of a failure.
• Load Balancing: Distributes traffic efficiently across WAN connections for optimal performance.
• Cloud Management: Provides centralized cloud-based management through Peplink’s InControl 2 platform for remote monitoring and configuration.
• Security Features: Includes VPN support, firewall protection, and intrusion detection to secure network traffic.
• User-Friendly Interface: Easy-to-use web interface for network configuration and monitoring.

Specifications:

• WAN Ports:
  • 2 x Gigabit Ethernet WAN ports for broadband or 4G LTE connections.
• LAN Ports:
  • 1 x Gigabit Ethernet LAN port.
• Cellular:
  • 4G LTE support (with optional 4G LTE modems).
  • Dual-SIM support for failover and load balancing.
• Wi-Fi:
  • Built-in 802.11ac Wi-Fi for wireless connectivity.
• LoRaWAN:
  • FlexModule Mini LoRaWAN integration for IoT connectivity, providing long-range, low-power communication for devices and sensors.
• SpeedFusion Technology:
  • Bond up to 2 WAN connections for increased bandwidth and reliability.
• VPN:
  • Supports IPsec, PPTP, L2TP, and SpeedFusion VPNs for secure remote access.
• Cloud Management:
  • Managed through InControl 2, Peplink’s cloud-based platform for remote monitoring and configuration.
• Performance:
  • Maximum throughput: 200 Mbps (WAN throughput).
• Power:
  • Power over Ethernet (PoE) support or standard DC 12V power input.
• Dimensions:
  • 6.77 x 5.4 x 1.18 inches (172 x 137 x 30 mm).
• Weight:
  • 0.6 lbs (273 grams).
• Additional Features:
  • Automatic failover, load balancing, and VLAN support for network segmentation.
